Strong anti-fouling and anti-blocking ability
It has strong anti-fouling and blocking ability and can withstand high COD, high hardness and high suspended solids in wastewater.
Coking Wastewater
Coking Wastewater
The core of the solution adopts the natural osmotic pressure difference driving principle, discarding the traditional high-pressure forced filtration mode of pressure membranes. The entire process operates at normal temperature and near normal pressure. It achieves the spontaneous penetration and separation of water molecules through the concentration difference on both sides of the membrane. It can efficiently retain residual phenols, cyanides, large molecular organic substances, colloids, heavy metals, hardness ions and various salts in the coking wastewater, fundamentally eliminating the irreversible organic pollution and scale hardening problems commonly encountered in high-pressure membrane processes. The system has extremely strong resistance to water quality shocks and can effectively adapt to adverse conditions such as fluctuations in the biochemical effluent of coking wastewater, intermittent oil content, and high residual organic matter. It can continuously maintain stable filtration flux and separation effect.

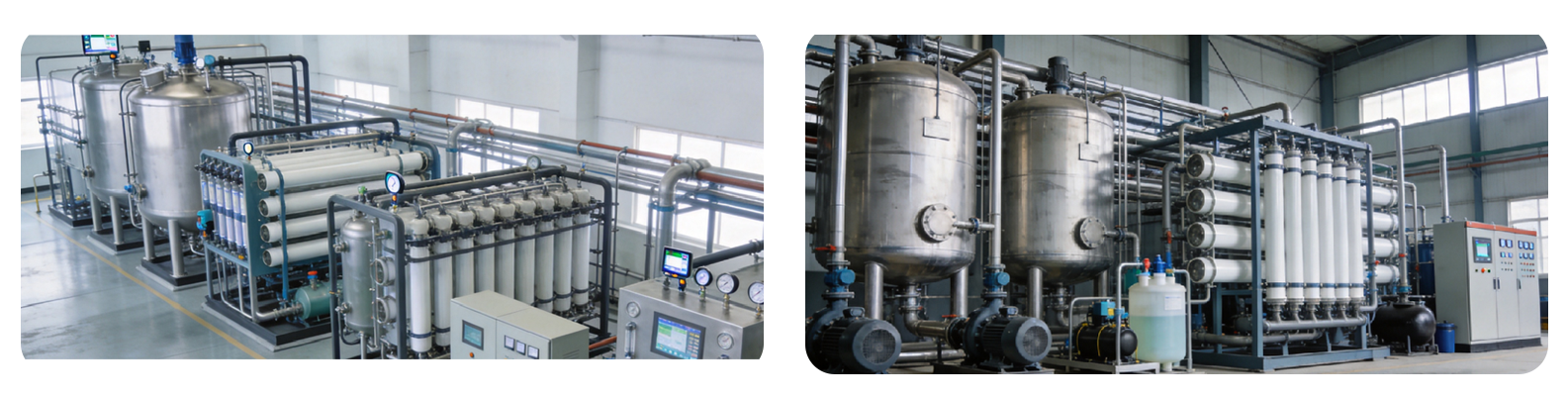

Project Details
Performance parameters
| Inflow COD | 200 - 8000 mg/L (suitable for biochemical tail water, process raw water, and RO concentrated water) |
| Inflow salt content (Total Dissolved Solids) | 8000～100000 mg/L |
| Running water temperature | 15 to 40 degrees Celsius, the optimal operating condition is 25 to 35 degrees Celsius. |
| Salt retention rate | ≥99.2% |
| System comprehensive recovery rate | 80%～92% |
| Stable membrane flux operation | 6～21 LMH |
| Operating mode | Constant temperature and pressure-free permeation drive, without high pressure, no phase change, and no high-temperature heating |
| Continuous operation capability | 24-hour uninterrupted continuous operation, with excellent resistance to water quality and water volume fluctuations |
| Automated configuration | PLC fully automatic control, online water quality monitoring, automatic cleaning, and fault remote alarm transmission |
Process Advantages
Running stably
The system operates stably and can adapt to the fluctuations in wastewater quality.
Preprocessing is simple.
The pre-treatment process is simple, without the need for additional complex pre-treatment equipment. It saves floor space, reduces secondary pollution of sludge, and lowers the construction cost by more than 20%.
High recovery rate
The system has a high recovery rate and produces a small amount of concentrated liquid.
